PID

For coffee lovers, the quest for the perfect cup of coffee is a never-ending journey. One of the most critical components in this journey is the brewing temperature, which plays a significant role in the taste and quality of the coffee. This is where the PID, or Proportional-Integral-Derivative controller, comes into play.

What is a PID?

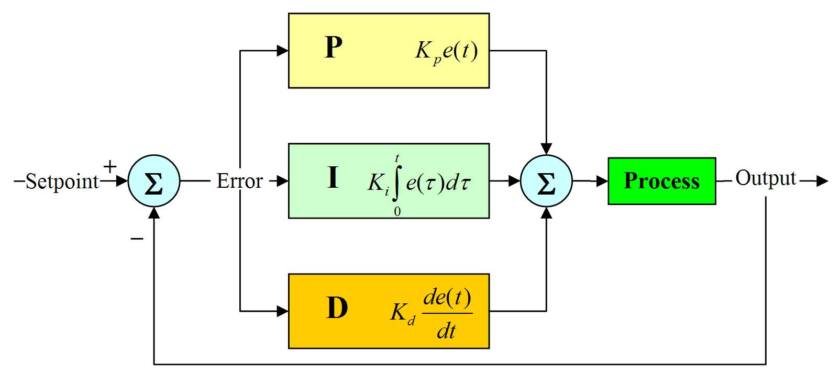

In simple terms, a PID is a type of controller used in various industries, including the coffee maker industry. It’s a control loop feedback mechanism that calculates an “error” value as the difference between a measured process variable (in this case, the temperature) and a desired setpoint. The controller then minimizes this error by adjusting the process control inputs.

Technical Details

At its core, a PID controller is a sophisticated electronic device that regulates temperature with astonishing accuracy. The “Proportional, Integral, Derivative” components work in harmony to ensure that the heat source of a coffee maker reaches and maintains the optimal temperature for brewing.

• Proportional control adjusts the temperature by calculating the difference between the desired setpoint and the current temperature, applying a correction based on that discrepancy.
• Integral control addresses the accumulation of past temperature errors, aiding in correcting drifts from the setpoint.
• Derivative control anticipates future temperature variances, making adjustments to prevent overshooting the target.

This triad of functions allows for an incredibly precise control over temperature, which is critical in brewing, as even minor fluctuations can significantly impact the flavor profile of the coffee.

The Role of PID in Coffee Makers

In the context of coffee makers, the PID controls the heating elements of the unit. This could be the brewing boiler, the milk steaming boiler, or in some high-end machines, the brew head. The PID increases the temperature in calculated increments to reach a set temperature, also known as the Set Value (SV).

The PID’s primary role in a coffee maker is to improve brewing precision by maintaining the brewing temperature within certain parameters.

The PID increases the temperature in calculated increments to reach a set temperature, known as the Set Value (SV). It calculates an “error” value as the difference between a measured process variable and a desired setpoint, and attempts to minimize the error by adjusting the process control inputs. (source)

PID in Espresso Machines

The role of the PID becomes even more critical in espresso machines. An espresso machine equipped with a PID ensures the perfect extraction temperature for your shot. This is because the PID allows for better control over the brewing temperature, depending on the grind size and the roast.

For instance, with light roasted beans, we need to slightly increase the extraction temperature. Without a PID, the brewing temperature is the calibrated one on the thermostat, or “pressurestat”. That is one temperature for all roasts and grind sizes. With a PID, you can set your brewing temperature as desired.

As PID controllers become more affordable, they are increasingly being used in coffee makers. For instance, the new Rancilio Silvia Pro X comes equipped with a dual boiler, PID controlled. This machine allows you to pull espresso shots and steam milk at the same time, thanks to two independent boilers, each controlled by its own PID. The machine also features a digital display that serves as a control panel, allowing you to change the brewing temperature, program auto-on and off, program the pre-infusion, and more (source)

Technical Details

A PID is a digital device that measures and controls the temperature in adjustable steps. The closer to the set temperature, the less heating applies, thus avoiding overshooting. This precision and control make PID controllers a preferred choice, even in entry-level espresso machines. (source)

It calculates an “error” value as the difference between a measured process variable and a desired setpoint. The controller attempts to minimize the error by adjusting the process control inputs.

In the context of an espresso machine, the PID controls various heating elements of the unit. The PID controlled element can heat the brewing boiler, the milk steaming boiler, or with some high-end machines, the brew head. The PID increases the temperature in calculated increments in order to reach a set temperature as called Set Value (SV).

The PID controller in an espresso machine is a digital device that measures and controls the temperature in adjustable steps. The closer to the set temperature, the less heating applies. This is how it avoids overshooting.

Conclusion

In conclusion, the PID controller plays a crucial role in both coffee makers and espresso machines. It ensures the perfect extraction temperature for your coffee or espresso shot, allowing for better control over the brewing temperature. Whether you’re a coffee enthusiast or a beginner, understanding the role of the PID in your coffee maker or espresso machine can help you in your quest for the perfect cup of coffee.
